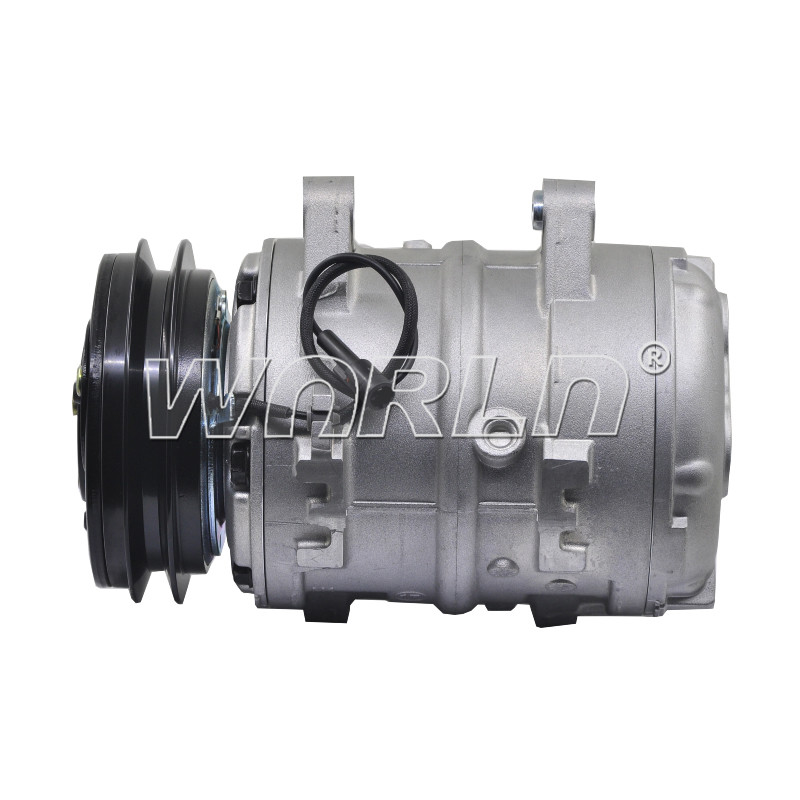

DKS15 1A Car AC Pump Compressors 12V For Isuzu NH1 WXIZ040

Parameter:

Air Is Cool, Not Cold

One indication of a potential issue with your vehicle's air conditioning system is if the air coming from the interior vents doesn't feel as cold as it used to, despite having the AC switched on, temperature lowered, and fan set at a higher speed. This could be a subtle warning sign that there might be a problem with the air conditioning system. The two common culprits for such issues are either a refrigerant leak within the system, causing the loss of refrigerant, or a defective AC compressor.

If you notice that the air conditioning system isn't providing the same level of cooling as before, it is advisable to have it inspected by a professional technician. They can diagnose the problem and recommend the appropriate course of action to rectify the issue, be it addressing a refrigerant leak or repairing/replacing the AC compressor. Taking prompt action can help prevent further damage to the system and ensure optimal performance of the vehicle's air conditioning system.

Product​ Pictures

Piston-Type Compressors

The automotive air conditioning compressor is a crucial component of the AC system, responsible for compressing and circulating the refrigerant. It consists of several key parts that work together to achieve effective cooling.

1. Compressor Housing: The outer shell of the compressor, designed to enclose and protect the internal components.

2. Compressor Pulley: A pulley attached to the front of the compressor, connected to the engine via a belt. It transfers power from the engine to drive the compressor.

3. Clutch Assembly: The clutch allows the compressor to engage and disengage as required. It consists of an electromagnetic coil, friction plates, and a hub.

4. Swash Plate: This component converts the rotational motion of the compressor shaft into a reciprocating or up-and-down motion. It is responsible for compressing the refrigerant.

5. Piston: Linked to the swash plate, the piston moves up and down within the compressor cylinder to compress the refrigerant gas.

6. Reed Valves: These one-way valves control the flow of refrigerant into and out of the cylinder. They prevent backflow and ensure efficient compression.

7. Oil Separator: Located within the compressor housing, it separates the refrigerant oil from the refrigerant gas before it leaves the compressor.

8. Shaft Seal: This seal prevents refrigerant from leaking out and contaminants from entering the compressor. It ensures the integrity of the system.

9. Control Valve: Some compressors have a control valve that regulates the flow of refrigerant based on the cooling demands of the vehicle.

10. Mounting Brackets: These brackets secure the compressor to the engine or chassis, keeping it stable and in the correct position.

Each of these components plays a crucial role in the operation of the automotive air conditioning compressor. Their proper functioning ensures efficient cooling and overall performance of the AC system in vehicles.
